MILWAUKEE M18BH-0 M18 COMPACT HAMMER BODY ONLY

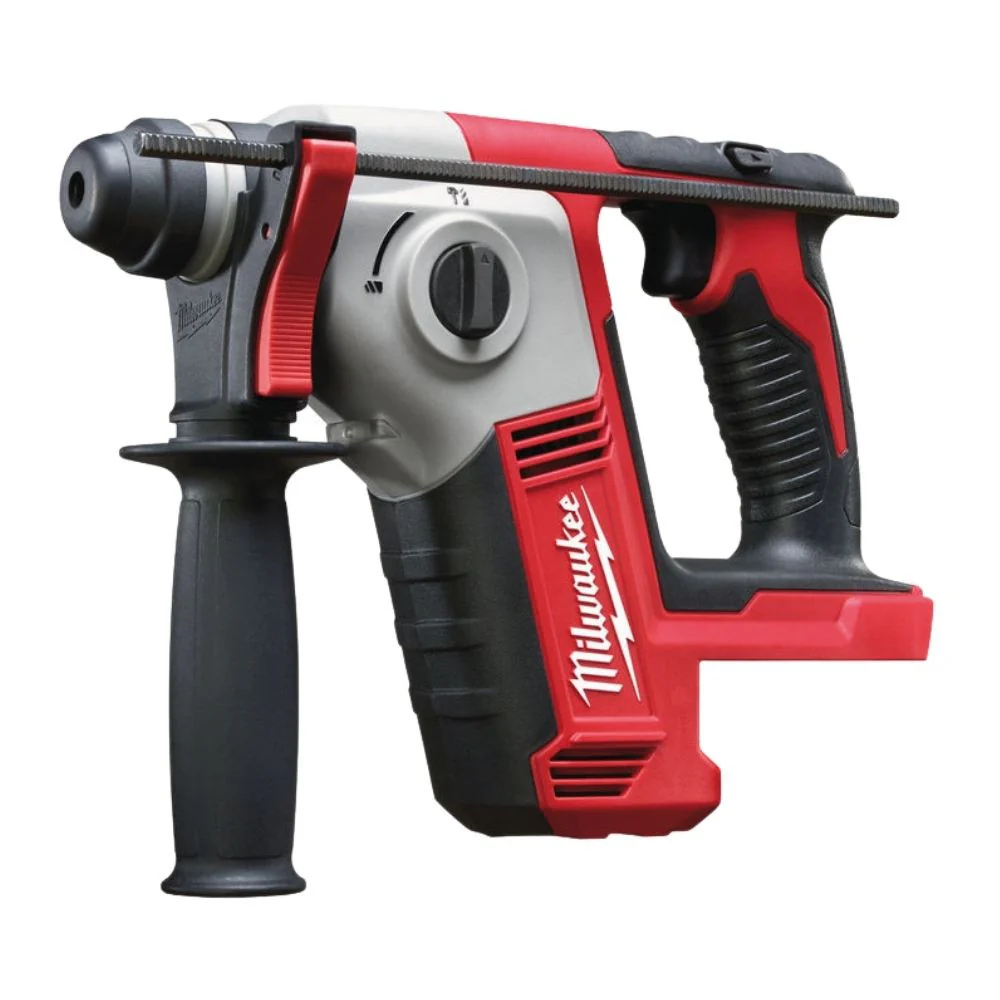

Milwaukee M18 Compact 2 Mode SDS Plus Hammer Drill M18BH-0
The Milwaukee M18 Compact 2 Mode SDS Plus Hammer Drill M18BH offers a superior power-to-weight ratio at 2.5 kg with 1.2 J (EPTA) impact energy. Its high-performance 4-pole motor maximizes power and efficiency, while REDLINK™ electronics ensure best-in-class durability. Featuring 2-mode operation (rotary hammer and rotation only), it provides versatility for various applications. With a low vibration value of 10.3 m/s² and optimized hammer drilling from 4 to 10 mm (max 16 mm), this drill also includes a forward/reverse switch, fuel gauge, and LED workspace illumination. It has a maximum percussion rate of 7000 BPM and a no-load speed of 0-1300 RPM.
Features
- Superior power to weight ratio in its class 2.5 kg 1.2 J (EPTA)
- High performance 4-pole motor delivers maximum power whilst maximising the power to weight ratio
- REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability
- 2-mode operation: choose rotary hammer or rotation only for maximum versatility
- Low vibration value of 10.3 m/s²
- Optimised hammer drilling from 4 to 10 mm, max diameter 16 mm
- Forward & reverse switch for added versatility in fastening applications
- 43 mm neck size - compatible with M12 DE dust extractor
- Fuel gauge displays remaining charge
- Bright LED workspace illumination
- REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life
- Part Number M18BH-0
Specifications
| BLOW ENERGY (EPTA)(J) | 1.2 |
| BLOW ENERGY (J) | 1.2 |
| MAX. DRILLING CONCRETE (MM) | 16 |
| MAX. DRILLING STEEL (MM) | 10 |
| MAX. DRILLING WOOD (MM) | 16 |
| MAX. PERCUSSION RATE (BPM) | 7000 |
| NO LOAD SPEED (RPM) | 0 - 1300 |
| OPTIMISED DRILLING CAPACITY IN CONCRETE (MM) | ⌀ 5.5 - 13 |
| TOOL RECEPTION | SDS-Plus |
| SOUND POWER LEVEL (LWA)(DB(A)) | 98.9 |
| SOUND POWER LEVEL UNCERTAINTY (DB(A)) | 3 |
| SOUND PRESSURE LEVEL (LPA)(DB(A)) | 87.9 |
| SOUND PRESSURE LEVEL UNCERTAINTY (DB(A)) | 3 |
| VIBRATION DRILLING (M/S²) | 10.3 |
| VIBRATION DRILLING INTO CONCRETE [M|S²] | 10.3 |
| VIBRATION DRILLING INTO CONCRETE UNCERTAINTY [M|S²] | 1.5 |
| Motor Type | Brushed |
Original: $248.52
-65%$248.52
$86.98
Description
Milwaukee M18 Compact 2 Mode SDS Plus Hammer Drill M18BH-0
The Milwaukee M18 Compact 2 Mode SDS Plus Hammer Drill M18BH offers a superior power-to-weight ratio at 2.5 kg with 1.2 J (EPTA) impact energy. Its high-performance 4-pole motor maximizes power and efficiency, while REDLINK™ electronics ensure best-in-class durability. Featuring 2-mode operation (rotary hammer and rotation only), it provides versatility for various applications. With a low vibration value of 10.3 m/s² and optimized hammer drilling from 4 to 10 mm (max 16 mm), this drill also includes a forward/reverse switch, fuel gauge, and LED workspace illumination. It has a maximum percussion rate of 7000 BPM and a no-load speed of 0-1300 RPM.
Features
- Superior power to weight ratio in its class 2.5 kg 1.2 J (EPTA)
- High performance 4-pole motor delivers maximum power whilst maximising the power to weight ratio
- REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability
- 2-mode operation: choose rotary hammer or rotation only for maximum versatility
- Low vibration value of 10.3 m/s²
- Optimised hammer drilling from 4 to 10 mm, max diameter 16 mm
- Forward & reverse switch for added versatility in fastening applications
- 43 mm neck size - compatible with M12 DE dust extractor
- Fuel gauge displays remaining charge
- Bright LED workspace illumination
- REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life
- Part Number M18BH-0
Specifications
| BLOW ENERGY (EPTA)(J) | 1.2 |
| BLOW ENERGY (J) | 1.2 |
| MAX. DRILLING CONCRETE (MM) | 16 |
| MAX. DRILLING STEEL (MM) | 10 |
| MAX. DRILLING WOOD (MM) | 16 |
| MAX. PERCUSSION RATE (BPM) | 7000 |
| NO LOAD SPEED (RPM) | 0 - 1300 |
| OPTIMISED DRILLING CAPACITY IN CONCRETE (MM) | ⌀ 5.5 - 13 |
| TOOL RECEPTION | SDS-Plus |
| SOUND POWER LEVEL (LWA)(DB(A)) | 98.9 |
| SOUND POWER LEVEL UNCERTAINTY (DB(A)) | 3 |
| SOUND PRESSURE LEVEL (LPA)(DB(A)) | 87.9 |
| SOUND PRESSURE LEVEL UNCERTAINTY (DB(A)) | 3 |
| VIBRATION DRILLING (M/S²) | 10.3 |
| VIBRATION DRILLING INTO CONCRETE [M|S²] | 10.3 |
| VIBRATION DRILLING INTO CONCRETE UNCERTAINTY [M|S²] | 1.5 |
| Motor Type | Brushed |
