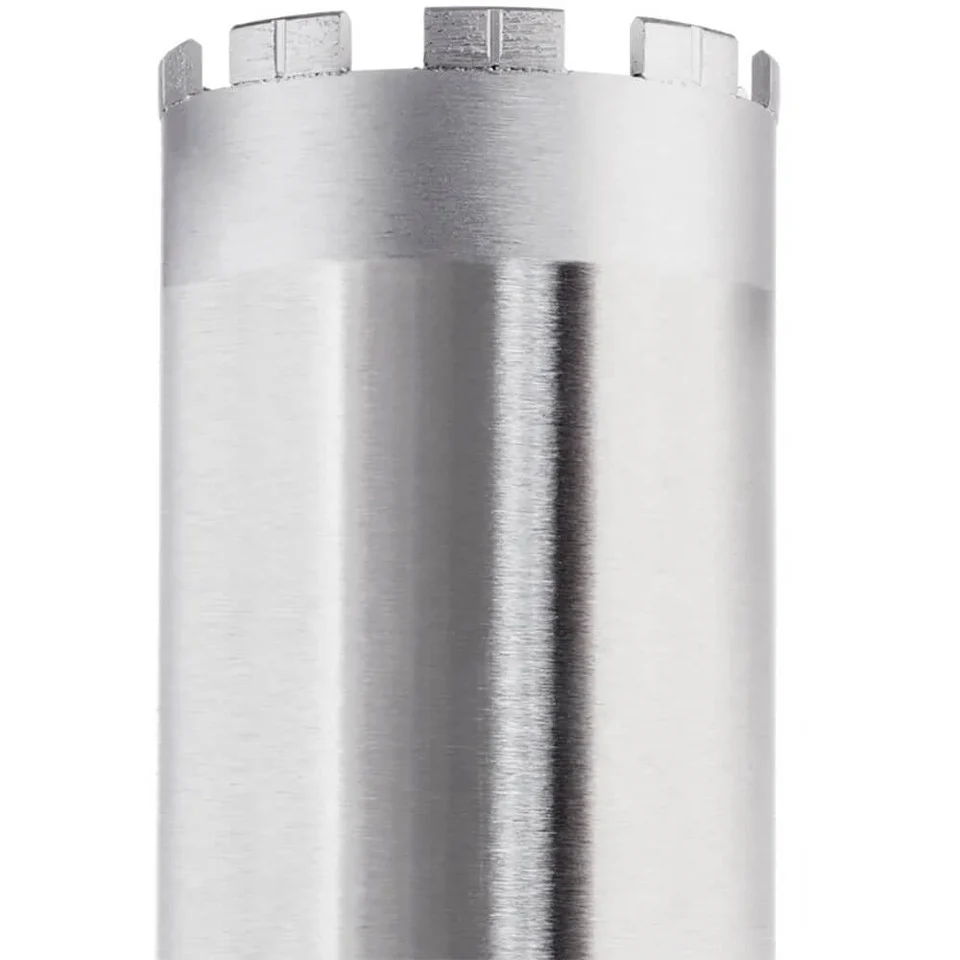

HUSQVARNA 102MM X 450MM TDP CORE

The Husqvarna Vari-Drill D20 Core Drill Bits are made for heavy-duty applications. Segments are laser welded to reduce the risk of segment loss & the core bit is developed for fast cutting in universal construction materials.

Applications

• Optimal Material
• Concrete Hard
• Natural Stone
• Good
• Brick
• Concrete Medium
• Acceptable
• Concrete Soft
• Green Concrete (abrasive) Hard
• Green Concrete (abrasive) Soft

Features

• Heavy-Duty Applications - For heavy-duty applications like water evacuation, ventilation & plumbing channels, waste evacuation pipes, gas supply pipes & barriers
• Ideal For Concrete & Hard Materials - Developed for fast cutting in universal construction materials, with a focus on hard materials like granite & hard concrete.
• Laser Welded - Segments are attached to the tube by laser welding to minimise the risk of segment loss
• Several Smart Accessories Available - With accessories such as adapters, centring devices & extenders the drill job can be made easier

Specifications

Performance Grade	Silver
Number of Segments	8
Assembly	Brazed
Drill connection	1 1/4"
Coolant	Wet/Dry
Power Range max kW	4kW
Power Range min kW	1.5kW
Diameter	102mm
Core length	450mm
Segment length	24mm
Segment width	3.5mm
Segment height	11mm
Suits	DM 700, DM 430, DM 230, DM 220, DM 200, DM 406 H, DMS 240
